Messaging Queue Patterns
Azure Messaging Services
In Azure, messaging patterns are implemented using Azure services such as Azure Service Bus, Azure Event Grid, Azure Queue Storage, and Azure Event Hubs. These services support various messaging patterns suited for different use cases. Here are the key messaging patterns available in Azure:

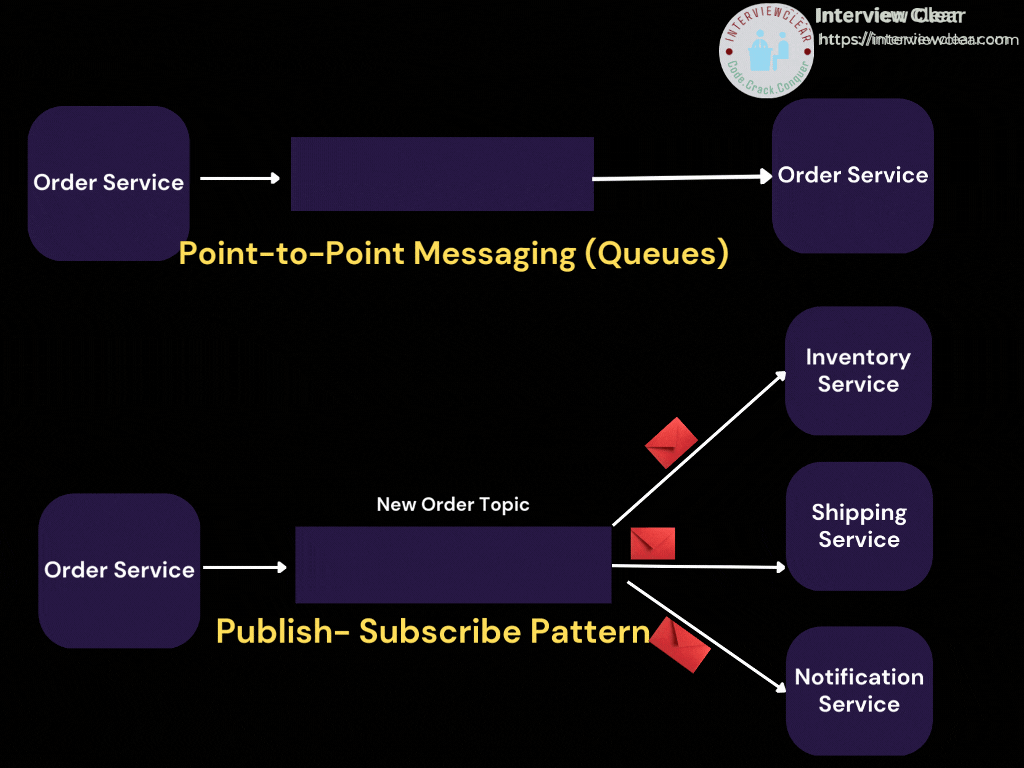

1. Point-to-Point Messaging (Queues)
Description: Messages are sent to a queue and processed by a single consumer. Once consumed, the message is removed from the queue.
Azure Services:
Azure Queue Storage: For simple queue-based scenarios with basic features.
Azure Service Bus Queues: For advanced scenarios requiring features like dead-letter queues and duplicate detection.
Use Case: Task distribution (e.g., processing orders in an e-commerce system).
2. Publish/Subscribe (Pub/Sub)
Description: A message is published to a topic and received by multiple subscribers. Each subscriber gets a copy of the message.
Azure Services:
Azure Service Bus Topics and Subscriptions: Supports filtering and routing to specific subscribers.
Azure Event Grid: Optimized for event-driven architectures, allowing events to be routed to multiple handlers.
Use Case: Broadcasting notifications (e.g., sending updates to multiple services about a product inventory change).
3. Fan-Out
Description: A single message is sent to multiple downstream queues or services.
Azure Services:
Azure Event Grid: Fans out events to multiple endpoints (e.g., Azure Functions, Logic Apps).
Azure Service Bus Topics: Implements fan-out using subscriptions for each target.
Use Case: Sending logs to analytics and monitoring systems simultaneously.

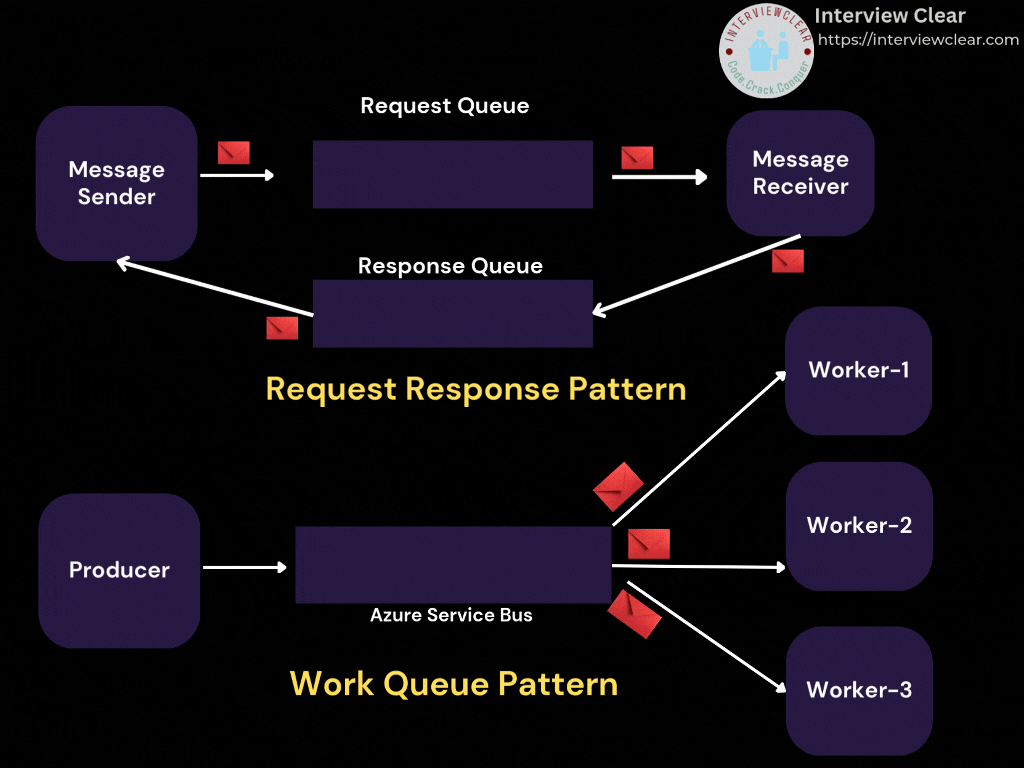

4. Request-Reply
Description: A client sends a request message and waits for a response from the receiver. Messages often include correlation IDs for matching requests and responses.
Azure Services:
Azure Service Bus: Supports correlation IDs and session state for tracking responses.
Use Case: Querying microservices for real-time data.
5. Work Queue
Description: A queue where multiple consumers process tasks in parallel. Tasks are distributed evenly across consumers to balance the load.
Azure Services:
Azure Queue Storage
Azure Service Bus Queues
Use Case: Distributed task processing (e.g., processing images or videos uploaded by users).

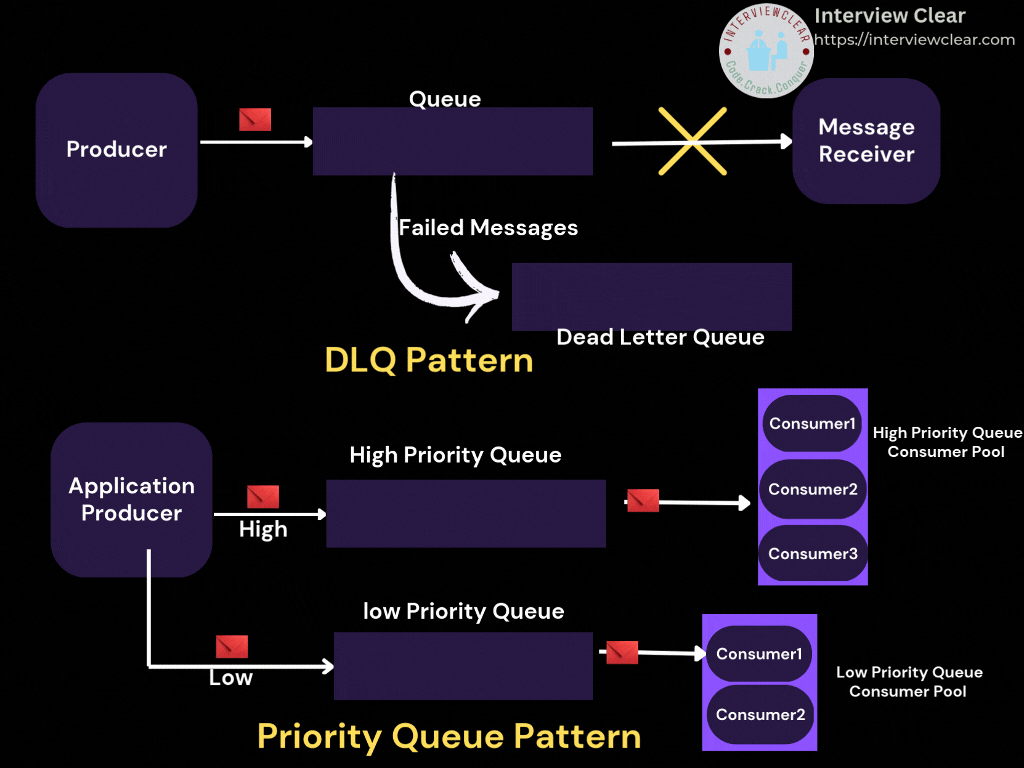

6. Dead Letter Queue (DLQ)
Description: Messages that cannot be processed by consumers are moved to a dead-letter queue for further inspection.
Azure Services:
Azure Service Bus: Built-in dead-letter queue for unprocessable messages.
Azure Queue Storage: Requires custom implementation for dead-lettering.
Use Case: Debugging and analyzing problematic messages.
7. Priority Queue
Description: Messages are prioritized, and higher-priority messages are processed first.
Azure Services:
Azure Service Bus: Supports message prioritization via rules and filters on subscriptions.
Use Case: Handling urgent notifications or critical tasks.
8. Event Streaming
Description: Messages (events) are produced and consumed in real-time, often with partitioning for scalability. Events are retained for a configured duration.
Azure Services:
Azure Event Hubs: Optimized for high-throughput event ingestion and streaming.
Use Case: Real-time data processing, like IoT telemetry or log aggregation.
9. Transactional Messaging
Description: Ensures atomicity and consistency when sending or receiving multiple messages as part of a transaction.
Azure Services:
Azure Service Bus: Supports transactional messaging with features like sending and receiving messages in a single transaction.
Use Case: Financial applications or scenarios requiring strict consistency.
10. Delayed Messaging
Description: A message is scheduled for delivery after a specific delay.
Azure Services:
Azure Service Bus: Supports message deferral and scheduled delivery.
Use Case: Scheduling tasks or retrying failed operations.
11. Competing Consumers
Description: Multiple consumers compete to process messages from the same queue, ensuring parallel processing.
Azure Services:
Azure Queue Storage
Azure Service Bus
Use Case: Scaling task processing to handle increased workload.
12. Reliable Messaging with Retry
Description: Ensures messages are delivered even if there are transient failures, with built-in retry mechanisms.
Azure Services:
Azure Service Bus: Automatic retries and dead-lettering.
Azure Queue Storage: Custom retry mechanisms can be implemented.
Use Case: Delivering time-sensitive updates with high reliability.
Choosing the Right Service
Azure Queue Storage: Lightweight and cost-effective for simple queueing needs.
Azure Service Bus: Advanced enterprise-grade features (e.g., DLQ, transactions, Pub/Sub).
Azure Event Grid: Event-driven architectures and serverless integration.
Azure Event Hubs: High-throughput event streaming for real-time applications.
